Relic Girder Front End
Relic Girder Front End
There are so many innovations on this stunning front end! Not satisfied with your rake? No problem! Same goes for the fork length. Adjust both with very little effort and switch back again when you are ready!
Accommodations for an internal fork stop have been provided. Use a Pro-One bottom bearing race with stop tab (Sold Separately) and don't worry about drilling and tapping holes. Everything is already taken care of!
There are THREE different widths!! Narrow, Mid and Relic-X which is our widest!!! And wildest!!!!

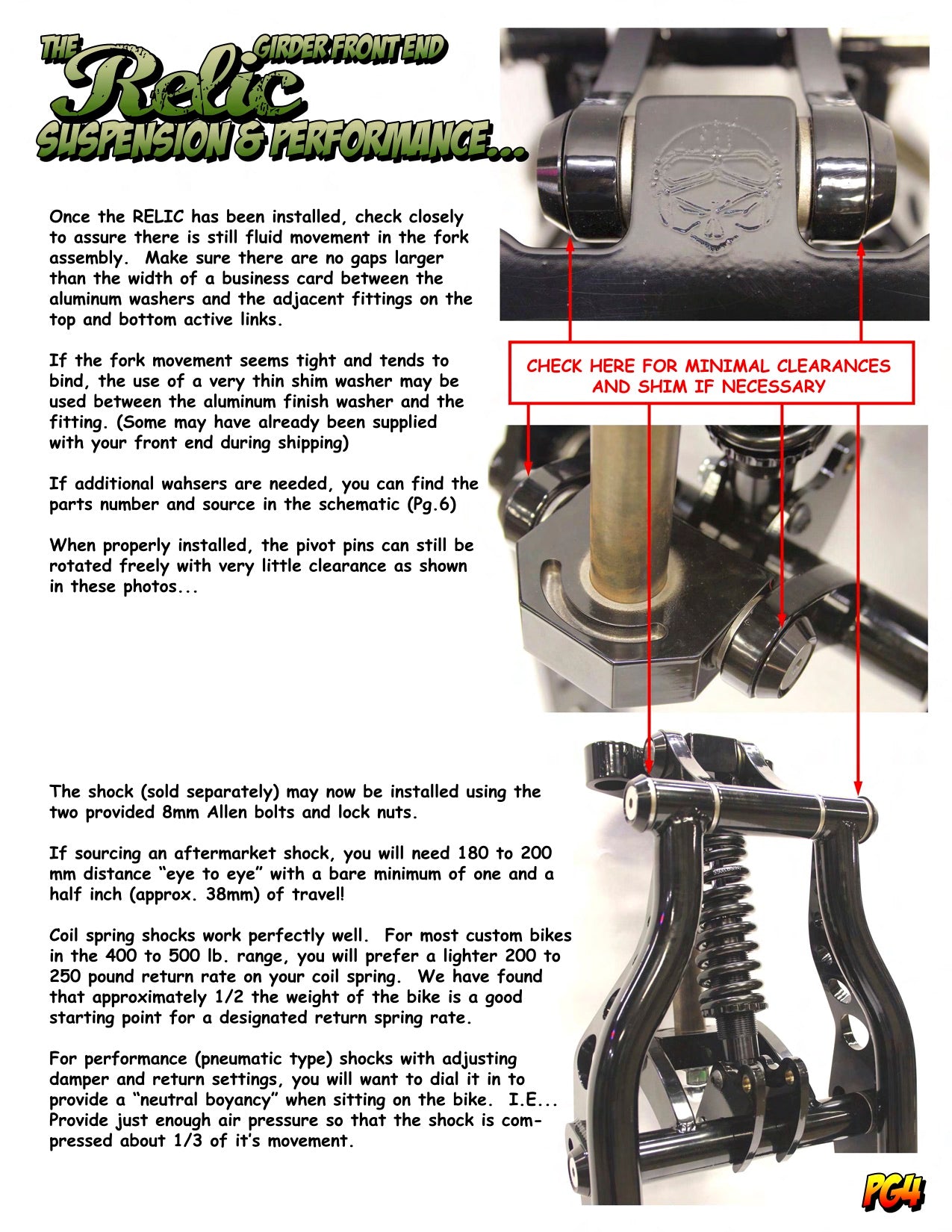

The RELIC accepts most any performance mountain bike shock that are 180 to 200 mm (7.5" to 8" eye to eye) with a minimum 2 inches (25 mm) of travel. Spring rate is up to your personal preference but we have found that 350 to 400 lbs is a great starting point for most bikes up to 500 lbs. See our website for a shock or use your own.
Also built into the RELIC are mounting points for a variety of aftermarket "Springer type" brake systems. The bottom two holes on the leg gussets are 5/16 and 3/8 I.D. allowing stand-offs to be used when mounting your brake hardware.
The RELIC can be shipped with a standard 3/4" axle kit. If purchased with an axle, the axle bushings are included as well and can be modified to use metric axles should you need.
We offer the RELIC in standard sizes listed below, but we can fabricate them to your custom length specifications granted it does not exceed the limits of practical safety! Follow up your purchase with an email explaining your needs and we will take care of you...
This is a custom product and may take up to 4-6 weeks based on demand.
For Indiana residents Indiana sales tax will apply...
We CANNOT advise what brake set up to use or the right size relic for your particular bike. You will need to measure your own and make your own decision. This is a custom item, there is a 15% restocking fee, providing we get the relic back the same way it went out.
